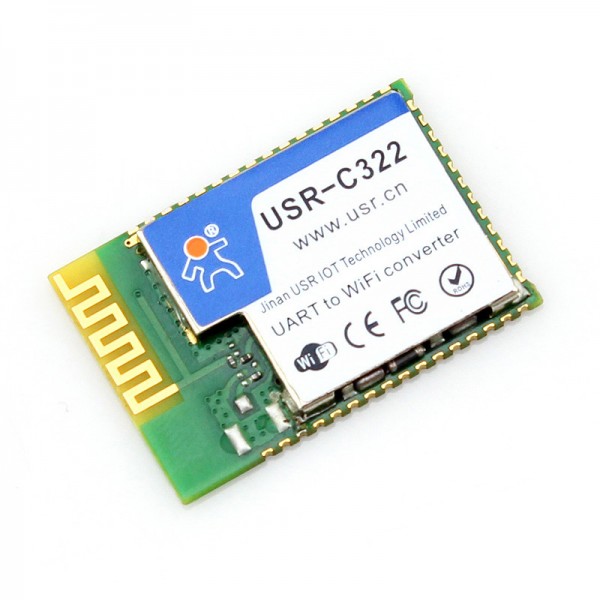

USR-C322 Wifi Module

Availability: In stock

Only 680 left

$13.00

Quick Overview

Support SSL Client function
Support search in local area network (LAN) and wireless parameters setting function
Support TCP/UDP Client registration packet mechanism
Support class RFC2217 automatic baud rate adaptation function
Supports 485 transmission control
Support AT+ simple instruction set configuration
Single 3.3 V power supply
Ultra low power mode, support deep dormancy
Support internal/external antenna option
Minisize: 18.22mm*26.65mm*2.8mm SMT
FCC/CE/RoHS certificated
OR

Details

Features of USR-C322 WiFi Modules

Support Wi-Fi@2.4 GHz 802.11 b/g/n wireless standards
Based on ARM Cortex-M4 kernel, running frequency of 80 MHZ
Support WEP, WPA/WPA2 security mode
Support AP/STA working mode
Support Simplelink/usrlink networking configuration
Support custom webpage function
The fully integrated serial to wifi TCP/UDP transmission function,the rate of serial port up to 3M bps
Support two uart and three socket communication
Support PC1 16 bytes encryption when work in transparent transmission mode
Support HTTPD Client function
Support websocket function
Support SSL Client function
Support search in local area network (LAN) and wireless parameters setting function
Support TCP/UDP Client registration packet mechanism
Support class RFC2217 automatic baud rate adaptation function
Supports 485 transmission control
Support AT+ simple instruction set configuration
Single 3.3 V power supply
Ultra low power mode, support deep dormancy
Support internal/external antenna option
Minisize: 18.22mm*26.65mm*2.8mm SMT
FCC/CE/RoHS certificated
