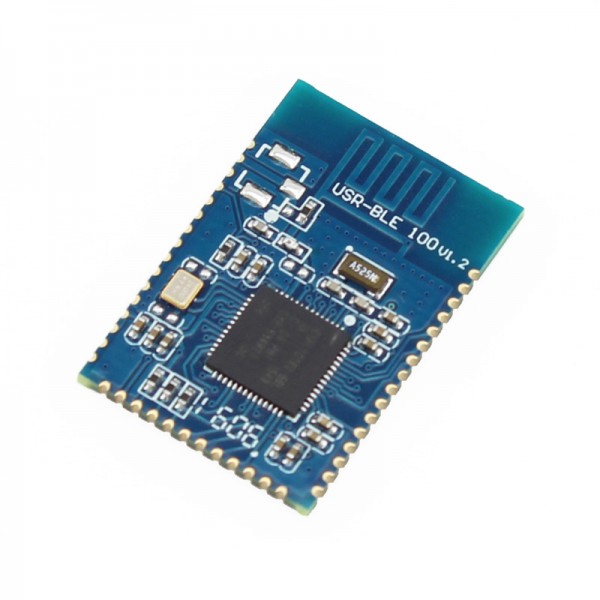

USR USR-BLE100 Bluetooth Module

Availability: In stock

Only 280 left

$4.80

Quick Overview

USR-BLE100 is an ultra-low power V4.1 bluetooth module. It is used for point-to-point data transparent transmission. User’device can communicate immediately after simple setup without concerning about transport protocol. The module supports master and slave mode. User not only can use both master and salve for transparent transmission, also can develop APP on the basis of standard BLE protocol. The module supports one-to-many broadcast, and has built-in iBeacon protocol. User can make it an iBeacon equipment with simple setup.
Features of Ble Modules

* Required Fields

$4.80

Details

USR-BLE100 is an ultra-low power V4.1 bluetooth module. It is used for point-to-point data transparent transmission. User’device can communicate immediately after simple setup without concerning about transport protocol. The module supports master and slave mode. User not only can use both master and salve for transparent transmission, also can develop APP on the basis of standard BLE protocol. The module supports one-to-many broadcast, and has built-in iBeacon protocol. User can make it an iBeacon equipment with simple setup.
Features of Ble Modules

Support standard BLE protocol
Low power broadcast mode of 1.3uA, sleep mode of 150nA,a variety of wake-up methods
Master/slave mode, quick switch
Setup methods: serial AT command,transparent transmission AT command
Support one-to-many data broadcast mode, built-in iBeacon protocol
Support Mesh networking mode to realize bluetooth self-organized network
Support UART Interface
1.9V~5.5V single supply
Support power detection function
