More Views

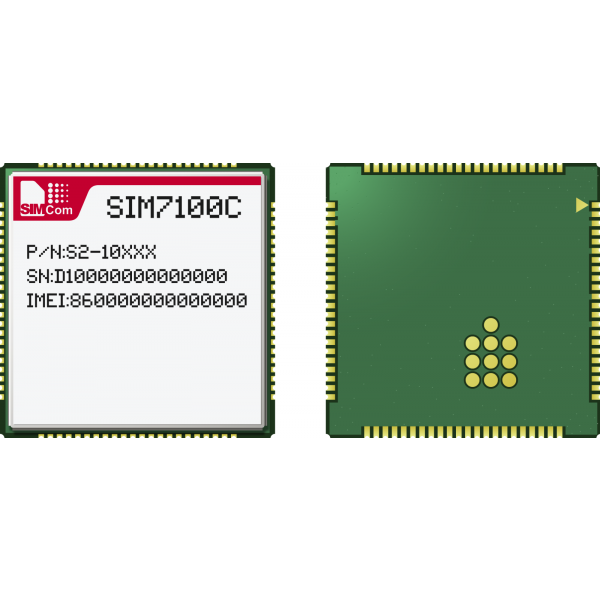

SIMCOM SIM7100C 4G Module

Availability: In stock

Only 300 left

$50.00

Quick Overview

General features
Four-Band TDD-LTE B38/B39/B40/B41
Three-Band FDD-LTE B1/B3/B8
Dual-Band TD-SCDMA B34/B39
Dual-Band UMTS/HSDPA/HSPA+ B1/B8
GSM/GPRS/EDGE 900/1800 MHz
Control Via AT Commands
Supply voltage range: 3.4V~ 4.2V
Operation temperature: -40℃ to +85℃
Dimension: 30 X 30X 2.9 mm
Weight: 5.9g
GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
OR

Details


General features
Four-Band TDD-LTE B38/B39/B40/B41
Three-Band FDD-LTE B1/B3/B8
Dual-Band TD-SCDMA B34/B39
Dual-Band UMTS/HSDPA/HSPA+ B1/B8
GSM/GPRS/EDGE 900/1800 MHz
Control Via AT Commands
Supply voltage range: 3.4V~ 4.2V
Operation temperature: -40℃ to +85℃
Dimension: 30 X 30X 2.9 mm
Weight: 5.9g
GNSS gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer
LTE
Uplink up to 50Mbps,
Downlink up to 100Mbps
TD-HSDPA/HSUPA
Uplink up to 2.2 Mbps,
Downlink up to 2.8 Mbps
TD-SCDMA
Uplink up to 128Kbps,
Downlink up to 384Kbps
HSPA+
Uplink up to 5.76 Mbps,
Downlink up to 42 Mbps
UMTS
Uplink/Downlink up to 384Kbps
EDGE Class:
Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
GPRS
Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
CSD
GSM data rate 14.4Kbps
WCDMA data rate 57.6Kbps
WCDMA 64kbps CSD for Video call
