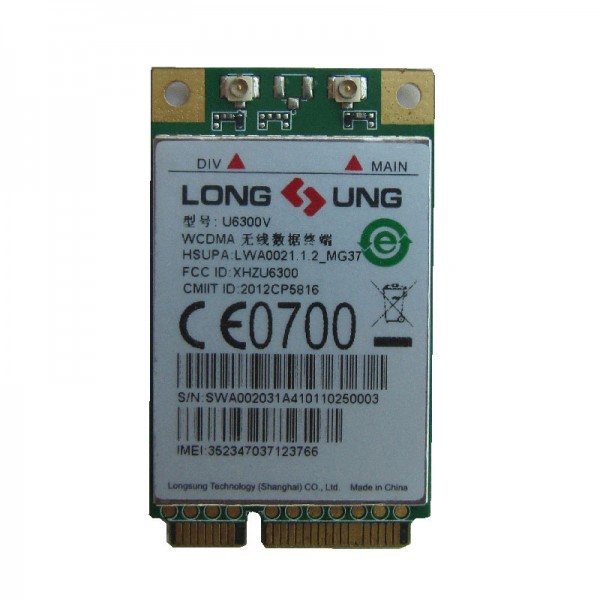

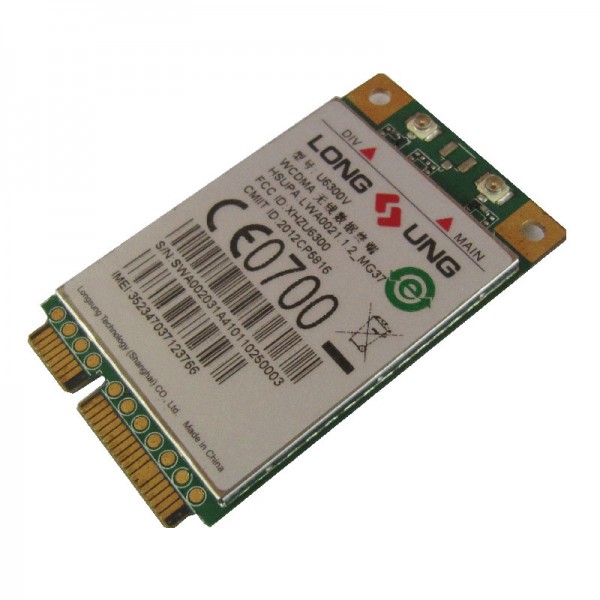

LONGSUNG WCDMA/HSPA U6300V 3G module

Availability: In stock

Only 360 left

$32.00

Quick Overview

U6300V is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.
U6300V support the Bands as the following:
Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz;
Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz

* Required Fields

$32.00

Details

U6300V is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.
U6300V support the Bands as the following:
Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz;
Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz
On HSPA network in the world, U6300V enables connect to the Internet at DL data speed up to 7.2Mbps and UL data speed up to 5.76Mbps. In areas where HSPA service is not available, U6300V still enables reliable and secure data connections over UMTS at speed up to 384 Kbps or EDGE at speed up to 237Kbps or GPRS at speed up to 85.6Kbps.
U6300V provides Audio, SMS, Phonebook functions as well as high speed access. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet, Electric-book, , Vehicle equipment, etc.
U6300V integrates the RF and Baseband onto one small PCB. It can fulfill all the functions of RF signal receiving and transmitting, Baseband signal processing and audio signal processing so that the customers can realize all kinds of their own wireless products with very few peripheral components.
Designed on a Dual-side PCB, U6300V has a tiny dimension of 51.0×30.0×4.6mm, with a Mini PCI-E connector, which provides all hardware interfaces between the module and customers’ boards. The main hardware interfaces of U6300V consist of power supply interfaces, USB interface, UART interfaces, USIM/SIM interface, Audio interfaces, PCM interface, ADC interface, VRTC interface and GPIO. Consider connecting antenna, U6300V support plug-in RF connector and antenna PAD.
U6300V is integrated with the TCP/IP protocol, it not only supports standard AT (Complied with Hayes 3GPP TS 27.007 and 27.005), but also support Longsung extended AT commands, which are very suited for developing all kinds of the customized applications.
Key benefits
@Support HSPA/UMTS/EDGE/GPRS/GSM network
@Wireless Broadband access up to: 7.2Mbps(DL)/5.76Mbps(UL)
@Standard Mini PCI-E connector, easy for debugging and after-sales maintenance
@Support AP-BP bidirectional sleep and wake control
@Support serial interface for voice
@Embedded powerful TCP/IP protocols, multiple Sockets & IP addresses
