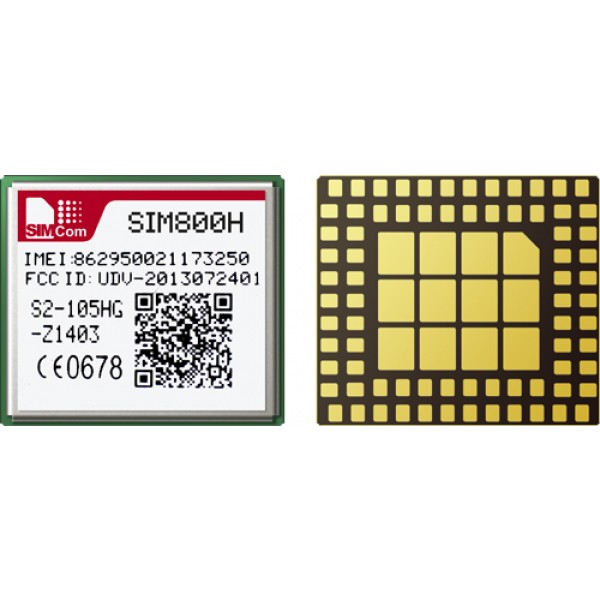

SIMCOM SIM800H 4 band GSM/GPRS Module

Availability: In stock

Only 500 left

$6.30

Quick Overview

Main characteristics
Four frequency 850/900/1800/1900MHz
Multi-slot class 12/10 GPRS
Mobile station class B GPRS
Meet 2/2+ GSM standards
- Class 4 (2 @850/900MHz W)
- Class 1 (1 @1800/1900MHz W)
Bluetooth: compatible with 3.0+EDR
FM: band range 76~109MHz, tuning step 50KHz
Size: mm 15.8*17.8*2.4
Weight: 1.35g
OR

Details

Main characteristics
Four frequency 850/900/1800/1900MHz
Multi-slot class 12/10 GPRS
Mobile station class B GPRS
Meet 2/2+ GSM standards
- Class 4 (2 @850/900MHz W)
- Class 1 (1 @1800/1900MHz W)
Bluetooth: compatible with 3.0+EDR
FM: band range 76~109MHz, tuning step 50KHz
Size: mm 15.8*17.8*2.4
Weight: 1.35g
Through AT command control (TS 3GPP 27.007, 27.005 and SIMCOM enhanced AT command set)
SIM application kit
Supply voltage range: 3.4 ~ 4.4V
Low power consumption
Operating temperature range: -40 ~ +85
Fax
Group 3, class 1
data transmission
Class GPRS 12, Max 85.6 Kbps (down / down)
Support PBCCH
Schemes CS Coding 1, 2, 3, 4
PPP-stack
CSD up to 14.4 kbps
Support USSD
Non transparent transmission
