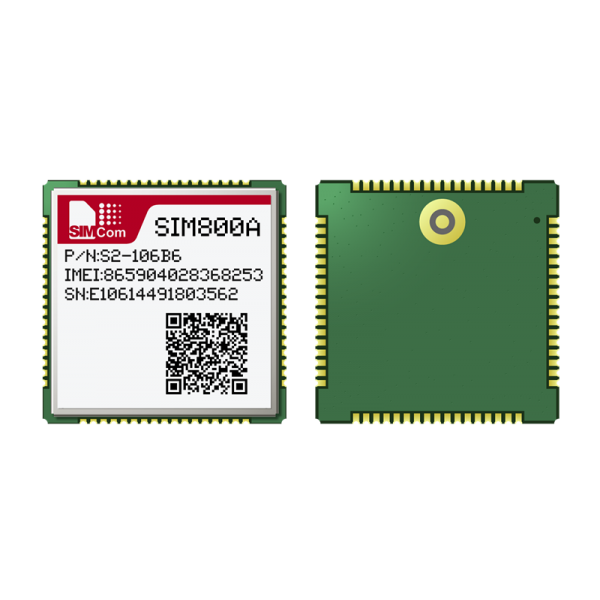

SIMCOM SIM800A 2 frequency GSM/GPRS Module

Availability: In stock

Only 400 left

$4.20

Quick Overview

Input:
Voltage Range: 90-264VAC 127-370VDC
Frequency: 47-63HZ
Efficiency: 86%
Over load: 105-140% rated output power
Working Temp: -30 to +70 degree
Working Humidity: 20-90% RH

Authentication: UL CE CB EMC
Size: 162.5*42.5*32mm
Power: 36V 1.67A 60W
Weight: 0.4KG
OR

Details

Main characteristics
Two frequency 900/1800MHz
Multi-slot class 12/10 GPRS
Mobile station class B GPRS
Meet 2/2+ GSM standards
- Class 4 (@900MHz 2W)
- Class 1 (@1800MHz 1W)
Size: 24*24*3mm
Weight: 3.1g
Through AT command control (GSM 7.07, 7.05 SIMCOM and enhanced AT command set)
SIM application kit
Supply voltage range: 3.4 ~ 4.4V
Low power consumption
Operating temperature range: -40 ~ C ~ +85 ~ C
data transmission
Class GPRS 12: maximum 85.6 Kbps (downlink rate)
Support PBCCH
Schemes CS Coding 1, 2, 3, 4
PPP-stack
CSD up to 14.4 kbps
USSD
Non transparent transmission
